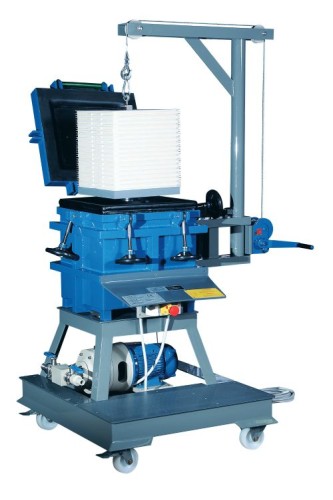

TE5 FILTER PUMP The smallest of the series TE: practical example of applications
10 Febbraio 2022
- Effective capacity: 5.000 l/h
- Capacity: 10.000 l/h
- Working pressure (bar): ca. 2-2,5
- Filtering surface(m2): ca. 2,7
- Filtering degree < 1µ
- Electric power (kw): 0,7 (=1 hp)
- Quantity of carbon: 2,50 kg
Please, find here below the most common baths and uses of OMG filter pumps:
Bright Nickel, Semi-Bright Nickel
- Right ratio: bath dimension / effective capacity has to be 1 : 3 // 1 : 5
- Bath dimensions 1000 lt - 1500 lt
- Zinc Plating ( static and roto, acid and alkaline)
Acid and static
- Right ratio 1: 3
- Bath dimensions 1500 lt – 2000 lt
Acid and roto
- Right ratio 1: 5
- Bath dimensions 1000 lt
Alkaline and static
- Right ratio 1: 3
- Bath dimensions 1500 lt – 2000 l
The right choice for the filter media:
Acid baths: filter paper 350 gr/mq
Alkaline baths: filter cloths with specific weight and permeability
Please, contact us in order to obtain your promotional price; we remain at your complete disposal for any additional support. OMG is at your complete disposal to suggest the most suitable filter pumps model considering your filtration needs.
